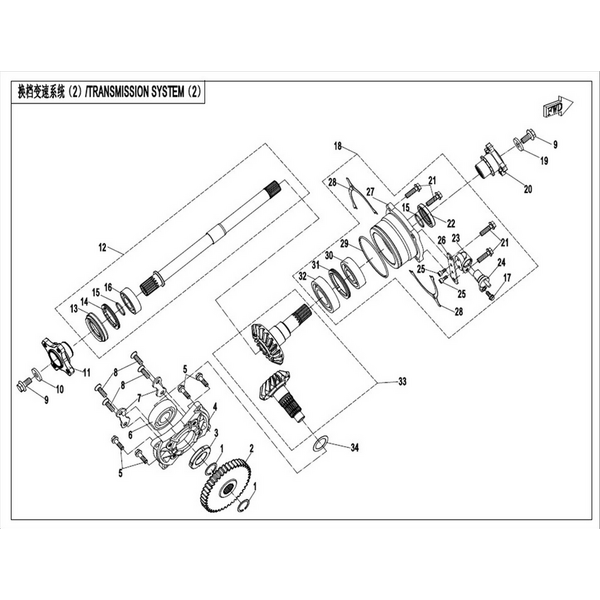

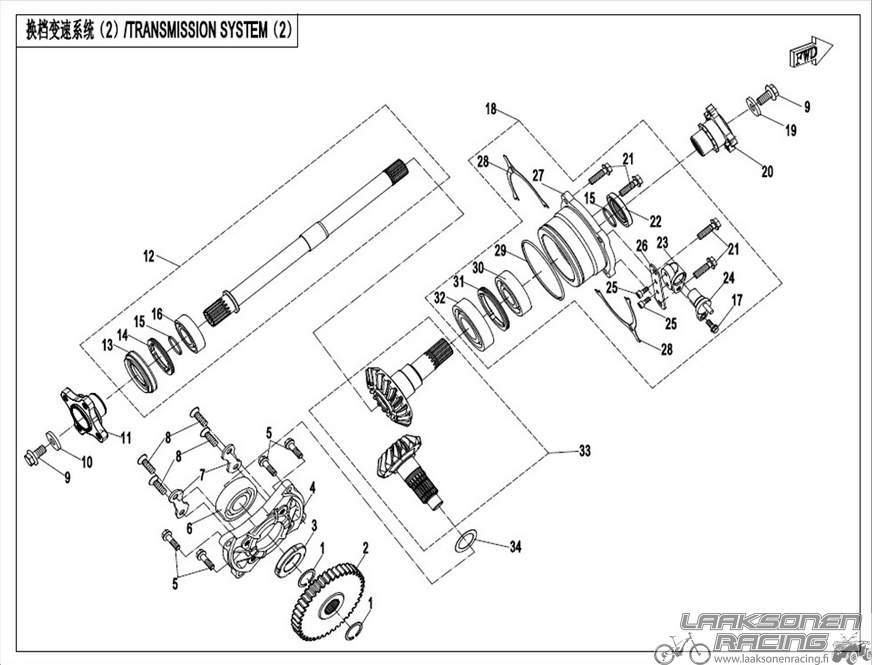

TRANSMISSION SYSTEM(2)

TRANSMISSION SYSTEM(2)


价格
起 1,20 + 运费
含增值税 25.5 %


数量
件


Parts name
01. CIRCLIP 25 (0180-061007-0050)
1.20 €
Delivery time approximately 3 - 15 日.
02. OUTPUT DRIVEN GEAR (0800-062102)
86.50 €
Delivery time approximately 3 - 15 日.
03. LOCK NUT, BEVEL GEAR (0JYA-062102)
8.30 €
Delivery time approximately 3 - 15 日.
04. BEARING SEAT,DRIVE BEVEL GEAR (0JYA-062103)
38.70 €
Delivery time approximately 3 - 15 日.
05. BOLT M8x28 (0JYA-062104)
2.40 €
Delivery time approximately 3 - 15 日.
06. BEARING 28x68x18 (0110-041007)
80.20 €
Delivery time approximately 3 - 15 日.
07. LIMITATOR, BEARING (0180-062104-0010)
3.60 €
Delivery time approximately 3 - 15 日.
08. SCREW M8x25 (30124-080025810)
1.20 €
Delivery time approximately 3 - 15 日.
09. BOLT M10x1.25x30 (0JWA-060002)
4.80 €
Delivery time approximately 3 - 15 日.
10. GASKET (7020-290002)
3.60 €
Delivery time approximately 3 - 15 日.
11. COUPLER (0GR0-060003)
67.90 €
Delivery time approximately 3 - 15 日.
12. FRONT OUTPUT SHAFT ASSY (0JWA-062300-10000)
131.70 €
Delivery time approximately 3 - 15 日.
13. OIL SEAL 35x61x9(14) (0JWA-062302)
18.80 €
Delivery time approximately 3 - 15 日.
14. BEARING RETAINER, FRONT OUTPUT SHAFT (0180-060008)
11.90 €
Delivery time approximately 3 - 15 日.
15. O-SEAL RING 25x2 (0800-062205)
3.60 €
Delivery time approximately 3 - 15 日.
16. BEARING (30400-02501)
13.90 €
Delivery time approximately 3 - 15 日.
17. BOLT M6x14 (30001-060014810)
1.20 €
Delivery time approximately 3 - 15 日.
18. DRIVEN BEVEL GEAR ASSY (0800-0622B0)
175.70 €
Delivery time approximately 3 - 15 日.
19. WASHER 10x27.5x4 (0GR0-062204)
2.40 €
Delivery time approximately 3 - 15 日.
20. COUPLER ASSY., REAR TRANSMISSION OUTPUT (0JYA-060100)
82.10 €
Delivery time approximately 3 - 15 日.
21. BOLT M8x28 (0110-060011-0010)
1.20 €
Delivery time approximately 3 - 15 日.
22. OIL SEAL 35x50x7 (0800-062204)
11.90 €
Delivery time approximately 3 - 15 日.
23. SEAT, SPEED SENSOR (0800-062208)
10.90 €
Delivery time approximately 3 - 15 日.
24. SPEED SENSOR (7020-150400)
52.70 €
Delivery time approximately 3 - 15 日.
25. SCREW M5x12 (30102-050012810)
1.20 €
Delivery time approximately 3 - 15 日.
26. PLATE, SPEED SENSOR (0800-062209)
4.80 €
Delivery time approximately 3 - 15 日.
27. BEARING HOUSING, DRIVEN BEVEL GEAR (0800-062202-1000)
45.50 €
Delivery time approximately 3 - 15 日.
28. ADJUST GASKET, DRIVEN BEVEL GEAR (0800-062203-0001)
2.40 €
Delivery time approximately 3 - 15 日.
28. ADJUST GASKET, DRIVEN BEVEL GEAR (0800-062203-0002)
2.40 €
Delivery time approximately 3 - 15 日.
28. ADJUST GASKET, DRIVEN BEVEL GEAR (0800-062203-0003)
2.40 €
Delivery time approximately 3 - 15 日.
28. ADJUST GASKET, DRIVEN BEVEL GEAR (0800-062203-0004)
2.40 €
Delivery time approximately 3 - 15 日.
28. ADJUST GASKET, DRIVEN BEVEL GEAR (0800-062203)
2.40 €
Delivery time approximately 3 - 15 日.
29. O-SEAL RING 88x2.5 (0180-062205)
9.50 €
Delivery time approximately 3 - 15 日.
30. BEARING (30499-02501)
47.30 €
Delivery time approximately 3 - 15 日.
31. STOPPER NUT, BEARING (0800-062206)
9.50 €
Delivery time approximately 3 - 15 日.
32. BEARING (30400-03500)
22.80 €
Delivery time approximately 3 - 15 日.
33. DRIVE BEVEL GEAR (0JYA-0622B0)
241.00 €
Delivery time approximately 3 - 15 日.
34. ADJUST GASKET, DRIVE BEVEL GEAR (0JYA-062101-00100)
1.20 €
Delivery time approximately 3 - 15 日.
34. ADJUST GASKET, DRIVE BEVEL GEAR (0JYA-062101-00200)
1.20 €
Delivery time approximately 3 - 15 日.
34. ADJUST GASKET, DRIVE BEVEL GEAR (0JYA-062101-00300)
1.20 €
Delivery time approximately 3 - 15 日.
34. ADJUST GASKET, DRIVE BEVEL GEAR (0JYA-062101-00400)
1.20 €
Delivery time approximately 3 - 15 日.
34. ADJUST GASKET, DRIVE BEVEL GEAR (0JYA-062101-00500)
1.20 €
Delivery time approximately 3 - 15 日.
