商品‪» CFMOTO OEM VARAOSAT‪» SIDE BY SIDE‪» UFORCE 1000‪» 2020‪»

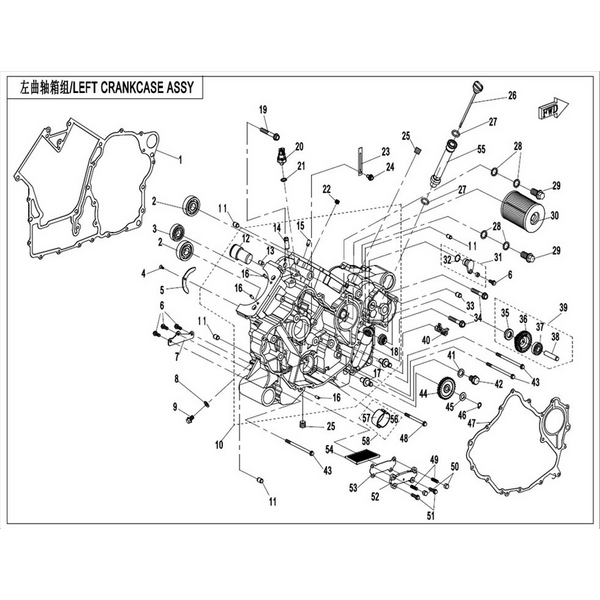

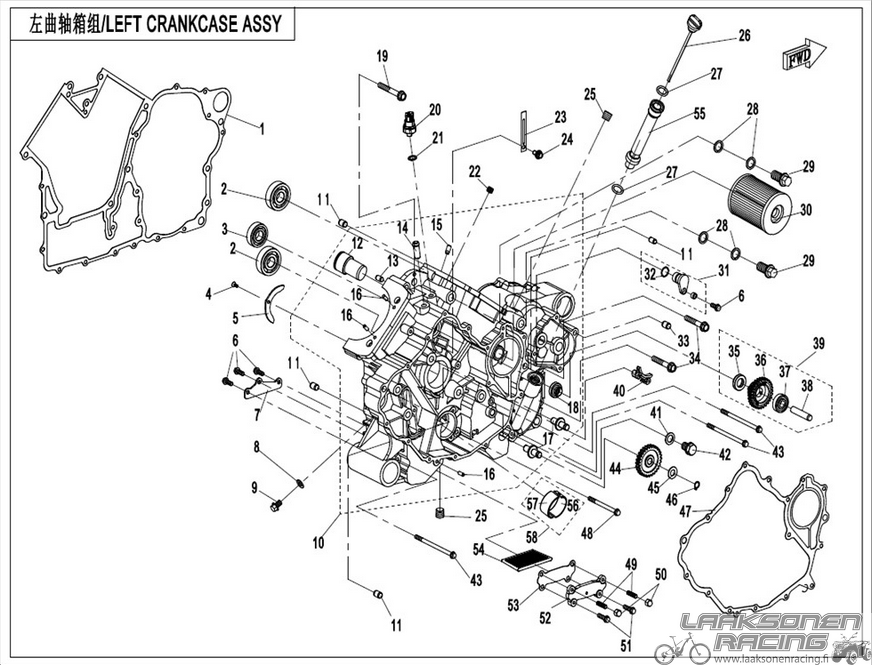

LEFT CRANKCASE ASSY.

LEFT CRANKCASE ASSY.


价格
起 1,20 + 运费
含增值税 25.5 %


数量
件


Parts name
01. GASKET, CRANKCASE (0JWA-011001-10000)
16.90 €
Delivery time approximately 3 - 15 日.
01. GASKET, CRANKCASE (0JWA-011001)
16.90 €
Delivery time approximately 3 - 15 日.
02. BEARING (30499-01700)
29.80 €
Delivery time approximately 3 - 15 日.
03. BEARING (30400-01704)
25.80 €
Delivery time approximately 3 - 15 日.
04. SCREW M4x10 (30122-040010850)
3.60 €
Delivery time approximately 3 - 15 日.
05. THRUST WASHER, CRANKCASE (0800-011003)
13.90 €
Delivery time approximately 3 - 15 日.
06. BOLT M6x16 (0010-090005-0010)
1.20 €
Delivery time approximately 3 - 15 日.
07. INNER PLATE,OIL STRAINER (0JWA-011008)
3.60 €
Delivery time approximately 3 - 15 日.
08. WASHER 8.5 (0010-023305)
3.60 €
Delivery time approximately 3 - 15 日.
09. BOLT M8x12.5, FLANGE (0180-332002-0010)
1.20 €
Delivery time approximately 3 - 15 日.
10. LH CRANKCASE ASSY (0JWA-011100-20000)
569.20 €
Delivery time approximately 3 - 15 日.
11. DOWEL PIN Dia 10x14 (0010-021005)
1.20 €
Delivery time approximately 3 - 15 日.
12. GEARSHAFT,REVERSE (0JWA-060001-10000)
18.80 €
Delivery time approximately 3 - 15 日.
13. SOLID PIN 8x14 (0700-022018)
1.20 €
Delivery time approximately 3 - 15 日.
14. JOINT, BREATHER HOSE (0010-013006-0010)
2.40 €
Delivery time approximately 3 - 15 日.
15. NOZZLE VALVE ASSY (0800-011400)
16.90 €
Delivery time approximately 3 - 15 日.
16. ROLLER NEEDLE P5x11.8 (30406-00500)
1.20 €
Delivery time approximately 3 - 15 日.
17. IDLE GEAR SHAFT, BREATHER (0800-011104)
12.90 €
Delivery time approximately 3 - 15 日.
18. SEAT, BREATHER (0800-011105)
11.90 €
Delivery time approximately 3 - 15 日.
19. BOLT M8x60 (0130-011109-0010)
2.40 €
Delivery time approximately 3 - 15 日.
20. OIL PRESSURE SWITCH (0800-012400)
21.80 €
Delivery time approximately 3 - 15 日.
21. WASHER 10 (0010-060010)
2.40 €
Delivery time approximately 3 - 15 日.
22. RESTRICTION PLUG (0800-011013)
2.40 €
Delivery time approximately 3 - 15 日.
23. WIRE CLAMP (0180-014010)
1.20 €
Delivery time approximately 3 - 15 日.
24. BOLT M6x12 (0010-021019-0010)
1.20 €
Delivery time approximately 3 - 15 日.
25. SCREW PLUG (0800-011006)
2.40 €
Delivery time approximately 3 - 15 日.
26. DIPSTICK ASSY, ENGINE OIL (0JWA-014100)
11.90 €
Delivery time approximately 3 - 15 日.
27. O-SEAL RING 18x3.55 (0110-013030)
1.20 €
Delivery time approximately 3 - 15 日.
28. GASKET 14 (0180-011006)
2.40 €
Delivery time approximately 3 - 15 日.
29. BOLT M14x1.5x32 (0180-011007-0010)
4.80 €
Delivery time approximately 3 - 15 日.
30. OIL FILTER, ENGINE (0800-011300-0004)
12.90 €
Delivery time approximately 3 - 15 日.
31. PLUG, SEAL (0130-011400)
2.40 €
Delivery time approximately 3 - 15 日.
32. O-SEAL RING 14x1.4 (0130-011303)
2.40 €
Delivery time approximately 3 - 15 日.
33. DOWEL PIN Dia 8x14 (0010-080008)
1.20 €
Delivery time approximately 3 - 15 日.
34. BOLT M8x50 (0040-012006-0010)
2.40 €
Delivery time approximately 3 - 15 日.
35. OIL SEAL 15x26x6 (0800-011203)
8.30 €
Delivery time approximately 3 - 15 日.
36. GEAR, BREATHER (0800-011201)
7.10 €
Delivery time approximately 3 - 15 日.
37. BEARING (30400-01003)
10.70 €
Delivery time approximately 3 - 15 日.
38. SHAFT, BREATHER (0800-011202)
8.30 €
Delivery time approximately 3 - 15 日.
39. BREATHER ASSY (0800-011200)
30.80 €
Delivery time approximately 3 - 15 日.
40. CHAIN GUARD (0800-011007)
3.60 €
Delivery time approximately 3 - 15 日.
41. WASHER 12 (0010-021014)
1.20 €
Delivery time approximately 3 - 15 日.
42. DRAIN BOLT, MAGNETIC M12X1.5 (0180-011500)
6.00 €
Delivery time approximately 3 - 15 日.
43. BOLT M6x105 (0030-011006-0010)
2.40 €
Delivery time approximately 3 - 15 日.
44. IDLE GEAR, BREATHER (0800-011004)
6.00 €
Delivery time approximately 3 - 15 日.
45. WASHER 10 (0800-011005)
2.40 €
Delivery time approximately 3 - 15 日.
46. CIRCLIPS FOR SHAFT10 (30801-01005)
2.40 €
Delivery time approximately 3 - 15 日.
47. GASKET,LH CRANKCASE COVER (0JWA-011004)
12.90 €
Delivery time approximately 3 - 15 日.
48. BOLT M6x75 (0A70-011005)
1.20 €
Delivery time approximately 3 - 15 日.
49. BOLT M6x23 (30017-060023420)
1.20 €
Delivery time approximately 3 - 15 日.
50. NUT M6 (30212-060830)
1.20 €
Delivery time approximately 3 - 15 日.
51. BOLT M6x22 (0010-080013-0010)
1.20 €
Delivery time approximately 3 - 15 日.
52. OUTER PLATE,OIL STRAINER (0JWA-011002)
9.50 €
Delivery time approximately 3 - 15 日.
53. OUTER GASKET,OIL STRAINER (0JWA-011003)
1.20 €
Delivery time approximately 3 - 15 日.
54. OIL STRAINER (0JWA-011009)
7.10 €
Delivery time approximately 3 - 15 日.
55. JOINT PIPE, , OIL DIPSTICK (0800-011011-1000)
45.60 €
Delivery time approximately 3 - 15 日.
56. PLAIN BEARING 2 (0800-011103-0001)
18.80 €
Delivery time approximately 3 - 15 日.
56. PLAIN BEARING 2 (0800-011103-0002)
18.80 €
Delivery time approximately 3 - 15 日.
57. PLAIN BEARING 1 (0800-011102-0001)
17.90 €
Delivery time approximately 3 - 15 日.
57. PLAIN BEARING 1 (0800-011102-0002)
17.90 €
Delivery time approximately 3 - 15 日.
58. MAIN PLAIN BEARING ASSY (0800-0111A0)
30.80 €
Delivery time approximately 3 - 15 日.
58. MAIN PLAIN BEARING ASSY (0800-0111B0)
30.80 €
Delivery time approximately 3 - 15 日.



Select an option.
可用性
约 3 - 15 日 下单后, at the earliest 27.7.2026. 评分可信度 信用度高.
